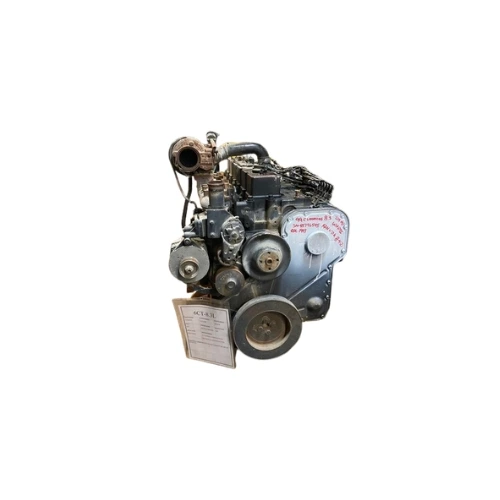

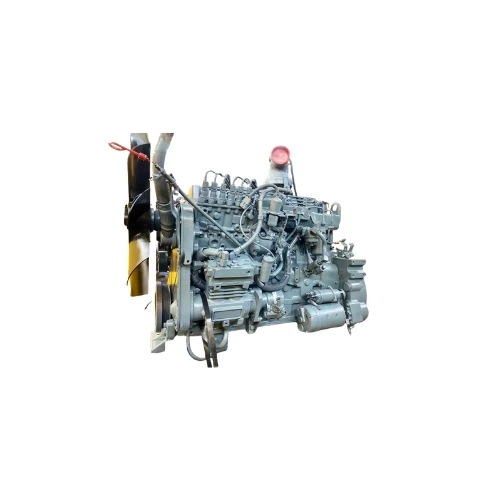

Cummins 8.3 Engine

Specifications

The Cummins 8.3 engine (505 cu in), including the 6C/6CTA and QSC8.3 models, is an inline-six, 4-stroke diesel engine with a bore and stroke of 114 mm × 135 mm (4.49 in × 5.31 in). It produces between 240 and 600 horsepower depending on the application and is widely known for its durability and reliability. The engine features a robust cast-iron block, wet cylinder liners, and, in modern versions, a High-Pressure Common Rail (HPCR) fuel system. It has an inline 6-cylinder configuration with a total displacement of 8.3 litres (505 cubic inches), and is typically turbocharged and after cooled for improved performance.

The dry weight ranges from approximately 1,500 to 1,800 pounds. In common variants, the 6CTA 8.3 marine engine delivers around 370–450 HP with mechanical or electronic injection, while the QSC 8.3 marine version produces about 490–600 HP at 2600–3000 RPM. Torque output varies by rating, generally ranging from about 950 to over 1,300 lb-ft.

Engine Variants

6C8.3 / 6CT8.3

The 6C8.3 and 6CT8.3 represent the original generation of the Cummins 8.3L engine, introduced in 1985. These are fully mechanical inline-six diesel engines known for their simplicity, reliability, and ease of maintenance. They use a traditional inline fuel injection pump system with no electronic controls, making them highly robust and popular in heavy-duty industrial and agricultural applications where durability and straightforward servicing are priorities.

6CTA8.3

The 6CTA8.3 is a turbocharged and after cooled version of the original mechanical 8.3L engine, designed to deliver improved power output and efficiency. It became widely used in marine, construction, and heavy-duty equipment applications due to its strong torque characteristics and dependable mechanical fuel system. The addition of turbocharging and after cooling significantly enhanced combustion efficiency and performance while maintaining the engine’s proven mechanical reliability.

ISC 8.3 (1998–2004+)

The ISC 8.3 marked the transition of the engine family into electronic control in 1998. Early versions used the Cummins Accumulator Pump System (CAPS) for fuel delivery before evolving into high-pressure common rail (HPCR) technology. This generation introduced advanced features such as 24-valve cylinder heads, mid-stop cylinder liners for easier rebuilding, and roller cam followers, improving efficiency, emissions control, and serviceability while maintaining strong performance for on-highway and industrial use.

QSC 8.3

The QSC 8.3 is the marine and industrial electronic counterpart to the ISC, featuring Cummins’ Quantum electronic control system for precise fuel management and performance optimization. Later versions incorporated high-pressure common rail fuel injection and Variable Geometry Turbochargers (VGT) to meet stricter emissions standards such as EPA Tier 3. It is known for delivering high horsepower, smooth operation, and excellent responsiveness in demanding marine and industrial environments.

6CTA Marine (450 Diamond)

The 6CTA Marine, often referred to as the 450 Diamond, is a high-performance mechanical variant of the 8.3L engine specifically tuned for marine applications. It is renowned for its exceptional durability, simplicity, and strong power output, often rated up to 450 horsepower. Despite lacking modern electronic controls, it remains highly respected for its reliability and ability to withstand continuous heavy-duty marine operation.
