Ford 460 Engine

Specifications

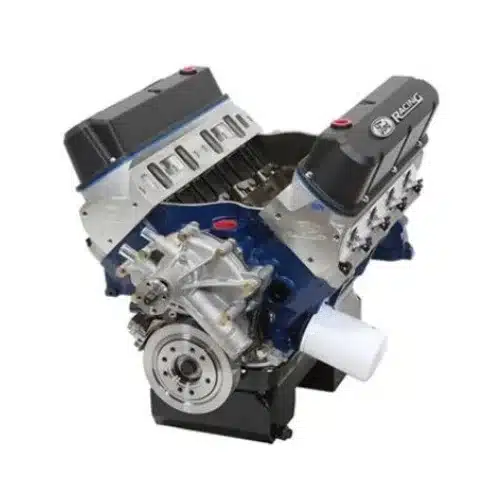

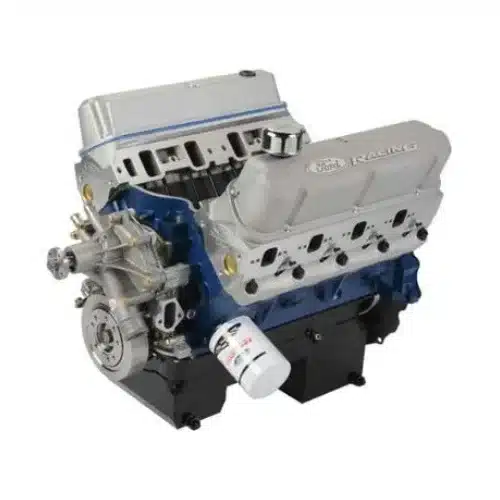

The Ford 460 Crate engine (7.5L) is a big-block V8 from Ford Motor Company stands as one of the most formidable and respected engines of the muscle car and heavy-duty truck era. Introduced in 1968 as part of Ford’s 385-series engine family, the 460 was engineered to provide massive displacement, exceptional durability, and relentless torque for full-size passenger cars, work trucks, vans, and motorhomes. Built around a heavy-duty cast-iron block and cylinder heads, the engine incorporates a deep-skirt block design for enhanced bottom-end strength, a 4.36-inch bore and 3.85-inch stroke, and a traditional overhead valve (OHV) pushrod valvetrain with two valves per cylinder an architecture known for simplicity, reliability, and ease of maintenance.

Early high-compression versions delivered an impressive factory rating of up to 365 horsepower and 485 lb-ft of torque under gross measurement standards, placing it among the most powerful production engines of its time.

Most commonly paired with Ford’s rugged C6 three-speed automatic transmission, the 460 earned a reputation for smooth power delivery, exceptional low-end pulling strength, and long-term reliability under demanding loads. Its robust construction and generous displacement have made it a favorite among enthusiasts for towing applications, marine use, drag racing, and high-horsepower street builds, supported by a vast aftermarket offering performance upgrades ranging from intake and camshaft packages to stroker kits and forced induction systems. Despite its considerable fuel consumption, the Ford 460 crate engine remains a legendary big-block platform celebrated for its strength, versatility, and unmatched torque output.

Compatible Models

Ford Thunderbird

In full-size Thunderbird models (1972–1976), the 460 was typically rated around 212–365 horsepower depending on year and compression era (gross vs. net ratings), producing up to 485 lb-ft of torque (early gross figures). Paired mainly with the C6 3-speed automatic, it delivered smooth, high-torque performance suited to luxury cruising with strong acceleration for a large personal luxury coupe.

Ford Galaxie 500

The Ford Galaxie 500 offered a range of powerful V8 engines throughout its production, including the 390, 427, and 428 FE-series engines in the 1960s. In its later years, particularly the early 1970s as the Galaxie line transitioned into the LTD the 460 cubic inch (7.5L) 385-series big block became available on Ford’s full-size platform. The 460 provided strong low-end torque and smooth performance, making it well suited for the Galaxie 500’s large, comfort-focused chassis.

Mercury Cougar

In 1971–1973 Cougar models, the Ford 460 crate engine delivered approximately 224–365 hp depending on emissions era tuning. Designed for grand-touring performance, it emphasized strong low-RPM torque and smooth automatic transmission pairing, offering muscle-car power in a more refined package.

Lincoln Continental

The 460 engine became standard in many Continental models during the 1970s, tuned for quiet operation and torque rather than peak horsepower. Output ranged from 208–365 hp (gross to net transition) with abundant torque for moving large luxury sedans. It was optimized for smoothness, reliability, and sustained load performance.

Lincoln Mark III, Lincoln Mark IV, and Lincoln Mark V

These Continental Mark series models prominently featured the 460 engine as a flagship power plant. Early Mark III versions produced up to 365 hp and 485 lb-ft (gross), while later Mark IV and V models saw lower net ratings (around 208–224 hp) due to emissions regulations. All emphasized effortless torque, ultra-smooth delivery, and pairing with Ford’s durable C6 automatic transmission for premium luxury performance.
