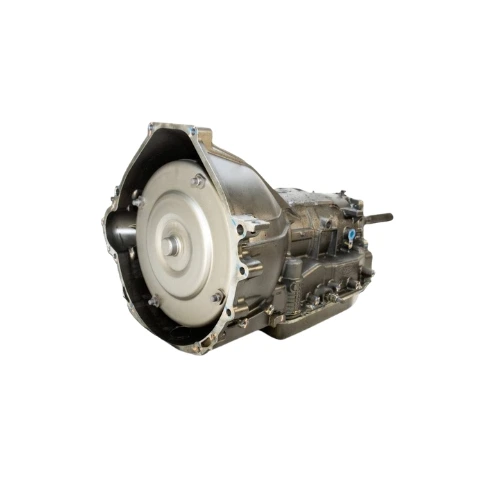

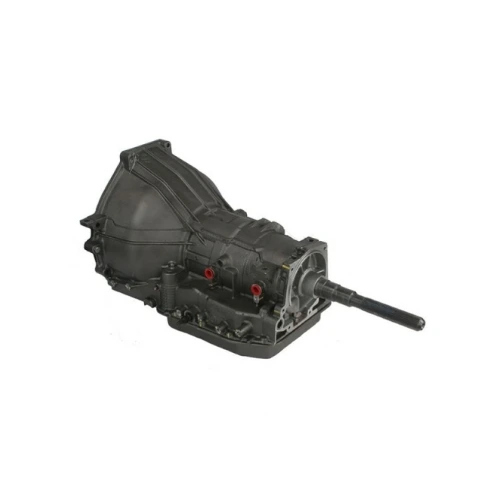

4R75E Transmission

Specifications

The 4R75E transmission is a heavy-duty, four-speed electronically controlled automatic transmission introduced in 2003 by Ford Motor Company for rear-wheel-drive vehicles, engineered to deliver dependable performance, durability, and smooth shifting in demanding applications. As an advanced evolution of the earlier 4R70W platform, the 4R75E incorporates strengthened internal components, upgraded electronic controls, and improved torque converter technology to enhance reliability and overall drivability. Designed to handle approximately 400 lb-ft of torque, this transmission is commonly paired with Ford’s 4.6L and 5.4L V8 engines, making it a popular choice for full-size trucks, vans, and SUVs that require consistent power delivery and load-handling capability.

It features a 2.45:1 first-gear ratio for strong off-the-line acceleration and improved towing performance, while its fully electronic control system enables precise shift timing, adaptive shift strategies, and optimized efficiency. The unit utilizes a seven-pin electrical connector for seamless integration with the vehicle’s powertrain control module and weighs approximately 231 pounds (dry), reflecting its robust construction. With a total fluid capacity of about 14 quarts, including the torque converter, the 4R75E is built to support long-term operation under heavy-duty conditions. Combining proven AOD-based engineering with modern electronic enhancements, the 4R75E transmission stands out as a reliable, high-capacity transmission solution for performance, towing, and everyday driving needs in rearwheels.

Transmission Variants

4R75E

This a 4-speed, electronically controlled automatic transmission designed for rear-wheel-drive (RWD) and some 4×4 Ford vehicles. It evolved from the 4R70W with strengthened internals and improved electronic controls. Gear ratios are typically 2.84:1 (1st), 1.55:1 (2nd), 1.00:1 (3rd), and 0.70:1 (4th overdrive), with a 2.32:1 reverse ratio. It features an upgraded pump assembly, stronger ring gear, revised torque converter, and a turbine/input speed sensor (TSS) for more precise shift timing and adaptive control. Torque capacity is commonly rated around 700–750 Nm (515–550 lb-ft) depending on calibration. It was widely used in mid-2000s Ford trucks, vans, and Panther-platform sedans.

4R75W

This shares the same basic architecture and gear ratios as the 4R75E but is typically referenced as the “Wide-ratio” version in Ford naming terminology. Mechanically, it includes the same strengthened planetary gearset, improved one-way clutch, reinforced case components, and enhanced valve body calibration. In practice, most late-production 4R75W units also incorporated electronic improvements similar to the 4R75E, and the two are often functionally interchangeable depending on year and application. Torque capacity is comparable to the 4R75E, generally in the 700 Nm range, making it suitable for higher-output 4.6L and 5.4L modular engines.

4R70E

This transmission is an earlier evolution of the 4R70W that incorporates full electronic control. It retains the same wide gear ratios (2.84 / 1.55 / 1.00 / 0.70) but generally features slightly lighter-duty internal components compared to the 4R75 series. Torque capacity is typically rated around 600–650 Nm (440–480 lb-ft). It uses electronic shift solenoids and adaptive shift strategy but may lack some of the later hardware refinements (such as upgraded pumps and certain reinforced geartrain components) found in the 4R75E.

AODE/4R70W

AODE (Automatic Overdrive Electronic) and its successor, the 4R70W, form the foundation of the 4R75E design. The AODE, introduced in the early 1990s, was Ford’s first fully electronic version of the original AOD transmission. The 4R70W improved upon it with a wider ratio gearset (2.84 first gear vs. the AOD’s 2.40), better lubrication circuits, upgraded clutch packs, and stronger input shafts. Torque capacity varied by year but generally ranged between 500–600 Nm (370–440 lb-ft). These transmissions established the modular architecture, bellhousing pattern, and overdrive design that carried forward into the stronger 4R75E series.
