Ford AOD Transmission

Specifications

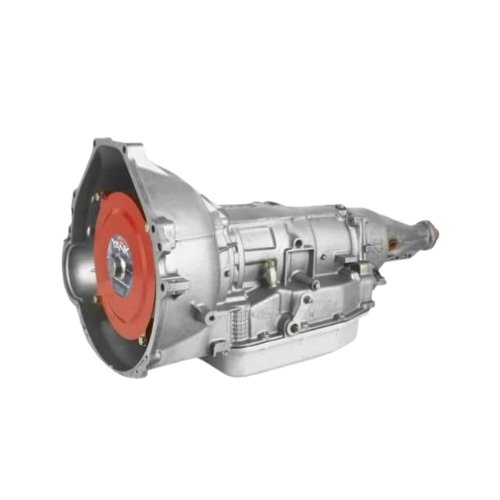

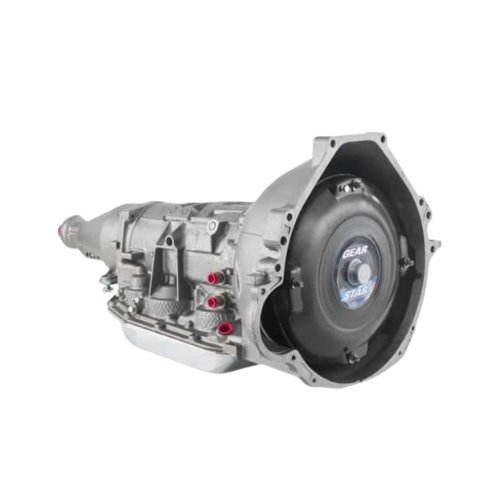

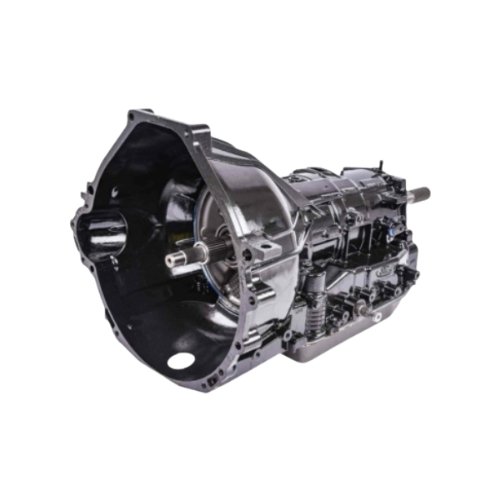

The Ford AOD transmission (automatic overdrive transmission) is a 4-speed automatic transmission developed by Ford and widely used in cars and trucks from the early 1980s through the early 1990s. It features four forward gears, with the 4th gear being an overdrive, which lowers engine RPM at highway speeds, improving fuel efficiency and reducing engine wear. This transmission is hydraulically controlled, meaning it operates without a computer, making it simpler, reliable, and easier to maintain compared to modern electronic transmissions. It also includes a lock-up torque converter that improves efficiency, reduces heat, and enhances overall performance.

The AOD transmission is designed for medium-duty applications, handling V6 and small V8 engines effectively. It typically weighs around 150–170 lbs and uses MERCON automatic transmission fluid for smooth operation. This transmission was commonly installed in popular Ford vehicles like the Mustang, Crown Victoria, Lincoln Town Car, and older F-150 trucks, and is known for its durability, ease of service, and dependable performance.

Transmission Variant

AOD-E

The AOD transmission (Automatic Overdrive) is a 4-speed automatic gearbox developed by Ford and used widely from the early 1980s to the early 1990s. It features a built-in overdrive 4th gear, which helps reduce engine speed at highway cruising, leading to better fuel economy and less engine wear. The AOD uses hydraulic controls instead of electronics, making it simple, reliable, and easy to maintain. It also includes a lock-up torque converter, which improves efficiency and reduces heat. Designed for medium-duty use, the AOD works well with V6 and small V8 engines and was commonly found in vehicles such as the Ford Mustang, Crown Victoria, Lincoln Town Car, and older F-150 models.

4R70W

The 4R70W is an electronically controlled 4-speed automatic transmission developed by Ford as an improved version of the AODE. It features a wide-ratio gear set for better acceleration, a stronger internal design for higher durability, and smoother, computer-controlled shifting. The transmission includes overdrive for fuel-efficient highway driving and uses a PWM (pulse width modulated) torque-converter clutch for better control and reduced heat. The 4R70W is known for being reliable, efficient, and easy to tune through the vehicle’s computer system. It was commonly used in Ford vehicles such as the Mustang, F-150, Crown Victoria, Explorer, and Mercury Grand Marquis from the mid-1990s through the 2000s.

4R75W

 The 4R75W is an updated, stronger version of Ford’s 4R70W 4-speed automatic transmission. It uses electronic control for smooth and precise shifting and includes a wide-ratio gear set for better takeoff and overall performance. Ford improved its internal parts including the torque converter, input shaft, and lubrication system —to increase durability and handle more torque than earlier versions. Like the 4R70W, it has an overdrive gear for better fuel economy during highway driving. The 4R75W was commonly used in mid-2000s Ford vehicles such as the F-150, Expedition, Crown Victoria, and Mercury Grand Marquis, offering reliable performance and stronger construction for heavier-duty use.

4R70E

The 4R70E is often used as another name for the 4R70W, but technically it refers to the electronically controlled version of Ford’s 4-speed, wide-ratio automatic transmission that evolved from the AOD/AODE family. Like the 4R70W, it uses electronic shift control for smoother, more precise gear changes and features wide gear ratios that improve acceleration and overall drivability. It includes a 4th-gear overdrive for better fuel economy at highway speeds and uses a computer-controlled torque-converter clutch to reduce heat and improve efficiency. The transmission is known for good durability and was used in Ford vehicles such as the Mustang, Crown Victoria, F-150, Explorer, and Mercury Grand Marquis during the late 1990s and early 2000s.

4R75E

The 4R75E is an improved, electronically controlled 4-speed automatic transmission built as a stronger version of the 4R70E/4R70W. It features upgraded internal components including better torque converter, stronger shafts, and improved lubrication to handle more power and last longer. It uses wide-ratio gears for quicker acceleration and includes a 4th-gear overdrive to save fuel at highway speeds. Because it is fully computer-controlled, it delivers smoother and more precise shifting. The 4R75E was commonly installed in mid-2000s Ford vehicles such as the F-150, Expedition, Crown Victoria, Town Car, and Mercury Grand Marquis, offering improved performance and reliability over earlier models.
